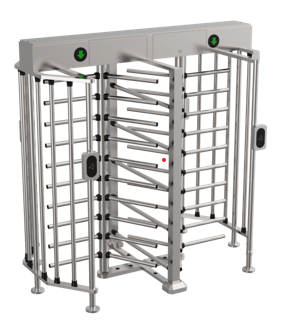

Product Highlights

• Size (L×W×H): 2200×1300×2230mm
• Pass width: 600mm
• Power: 50W
• Material: Body δ=1.2mm / Fence ф=1.0mm SUS304

Parameters

• ✔ Size (L×W×H): 2200×1300×2230mm
• ✔ Pass width: 600mm
• ✔ Power: 50W
• ✔ Material: Body δ=1.2mm / Fence ф=1.0mm SUS304
• ✔ Movement: Molding full-height turnstile movement
• ✔ Sensor: Limited sensor
• ✔ Indicator Light: Dynamic indicator light
• ✔ Drive Unit: Anti-burn solenoid
• ✔ Power Supply: 24V 150W
• ✔ Control Unit: Main board
• ✔ Communication Interface: Dry contact & RS485
• ✔ Pass rate: 35–50 persons/minute
• ✔ Temperature: -20℃ to +70℃
• ✔ Humidity: ≤90% No condensation
• ✔ IP Rating: IP4X
• ✔ Environment: Indoor and outdoor

Features

• ✔ Reasonable and reliable design, low noise, smooth operation and long service life
• ✔ Card can be set "with memory" or "without memory" functions
• ✔ With automatic reset function, i.e. after accessing the gate, it automatically restores to the locked state if not passed within the set time
• ✔ Compatible with IC card, ID card, scanning, and face recognition
• ✔ Two modes of operation are available: open or closed
• ✔ Various working modes are available, including two-way card reading and one-way card reading
