Product Highlights

• Size (L*W*H): 330×280×980mm
• Pass width: 550mm
• Power: 50W
• Material: Top tempering glass + body δ=1.5mm SUS304
• ️ Bar Material: SUS201

Parameters

• ✔️ Size (L*W*H): 330×280×980mm
• ✔️ Pass width: 550mm
• ✔️ Power: 50W
• ✔️ Material: Top tempering glass + body δ=1.5mm SUS304
• ✔️ Bar Material: SUS201

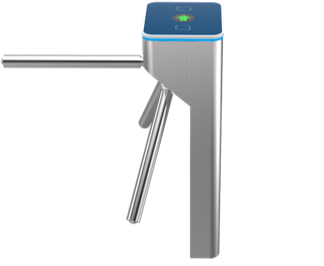

• ✔️ Movement: Brushless movement of automatic tripod turnstile
• ✔️ Clutch: ∅=80mm
• ✔️ Indicator Light: Dynamic indicator light + RGB light
• ✔️ Drive Unit: Brushless DC Motor 30k 40w
• ✔️ Power Supply: 24V 150W
• ✔️ Control Unit: 1V1 Main board
• ✔️ Communication Interface: Dry contact & RS485
• ✔️ Pass rate: 35–50 persons/minute
• ✔️ Temperature: -20℃ ~ +70℃
• ✔️ Humidity: ≤90% No condensation
• ✔️ IP: IP4X
• ✔️ Environment: Indoor and outdoor (outdoor with canopy)

Features

• ✔️ Reasonable and reliable design, low noise, smooth operation, and long service life
• ✔️ Using brushless motor, cooperating with our professional machine core, the function is more powerful
• ✔️ LED indicator, valid card showing green, illegal card showing red
• ✔️ Card can be set "with memory" or "without memory"
• ✔️ With automatic reset function: after accessing the gate, it automatically restores to locked state if not passed within the set time
• ✔️ Compatible with IC, ID card, scanning, and face recognition
• ✔️ With unified and standard external electrical interface to facilitate system integration
• ✔️ Extensible to realize access control, attendance, fees, and other functions
• ✔️ Can be used completely outdoors; one machine can be used as a lane
